Electricity Pet Treat Machine SS Dog Chewing Gum Machine

Introduction of the Dog Chewing Gum Machine :

1) Raw materials of dog/cat/fish food:
wheat/ corn flour, fish meal, born powder, animal oil,soya meal, mustard cake,
2) Final food : different shapes and sizes of dog food,cat food,shrimp feed,fish feed,poultry feed
3) Capacity: 150kg/h, 250kg/h
4) Consumption: Low electricity and labor consumption
5) Design: With flexible design based on the client's demands, we provide turn key project.

2. Flexibility and creativity:

1). Ingredient flexibility – processing of a wide range of raw materials for varied treats for different animals

in a variety of shapes and colors

2). Different textures and colors – variable density, air and moisture content, chewiness, crispiness, etc.

3). Productive – continuous processing, fast changeover times and easy cleaning and maintenance

4). Full control of process parameters and automation to ensure consistent quality and product features

3. Parameter of dog chews production line :

4. The introduction of Single Screw Extruder:

Single-screw extruders use one single screw in the barrel of the extruder to transport and shape multiple ingredients into a uniform food product by forcing the ingredient mix through a shaped die to produce the uniform shape. Single-screw extruders typically consist

of three zones: feeding zone, kneading zone, cooling zone. In contrast to twin-screw extruders, single-screw extruders have poor mixing ability and therefore materials should be pre-mixed or pre-conditioned. A single-screw extruder’s processing conditions can be controlled to achieve a variety of effects on temperature and residence time. The residence time in the barrel can vary from 15 to 300 seconds, determined by increasing or decreasing the speed of the shaft. A variety of fried and baked snacks are processed using single-screw extruders.

5. The introduction of Dryer oven

The multi-layer Oven can be classified in to three-layer ,five-layer and seven-layer; large, medium and small according to the different output. It can be classified into the Electricity, Gas, Desiel, Steam heating according to the different heating way. It can be used to bake and dry the food. The dryer can bake all kinds of the inflating food, pet food, texture soy protein, peanut and so on.

Features:

1). Multi-layer Oven has the compact structure, small occupying, large drying area and high thermal efficiency

2). The belt and the heat preservation cover use the stainless steel, it is very clean

3). The net belt running speed can be controlled to adjust the food drying time in the Oven

4). The temperature can be controlled willfully and designed according to the need

5). The Roasting Oven hot air temperature can up to 300℃. It is suitable for baking and puffing the food.

Pet chews shapes by change moulds, and we can also design the sample shapes according to your request.

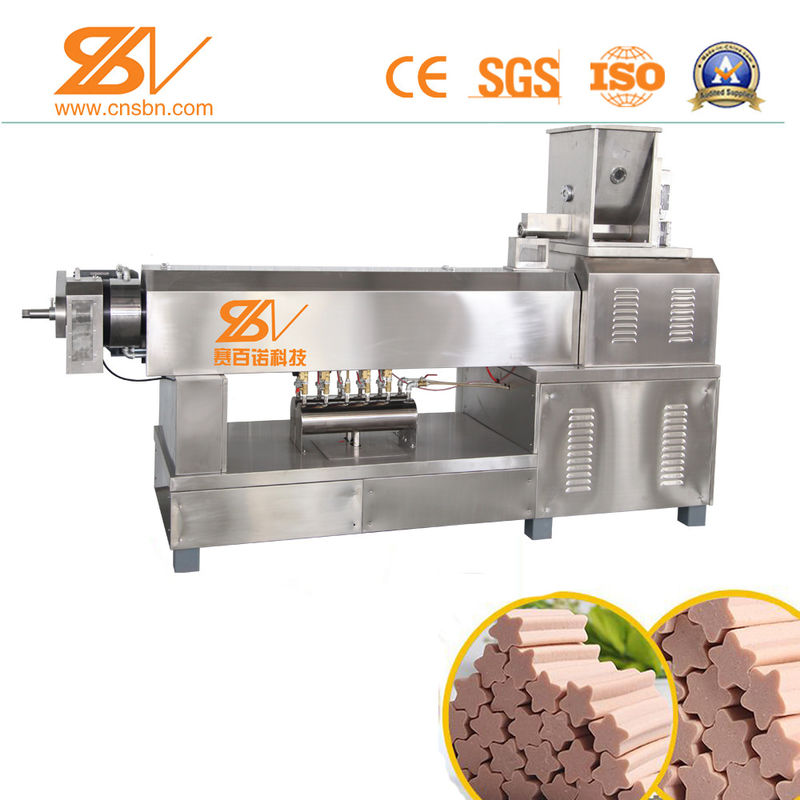

Name: Single screw extruder
Function:Extrude and cook raw material into different size and shapes
Features:Screw material is 38CrMoAl with nitriding treatment, the hardness is 60HRC.. The barrel also use good material, hardness is 55HRC.

Name: Dryer

Function:There are three layer inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.

Name: Whole processing line
Function:This is whole full automatic production line, normally there are four capacity we can

Material mixing with water → material conveying → extruding → drying → cooling → Storage
