Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine

Certification
China Jinan Saibainuo Technology Development Co., Ltd certification
I'm Online Chat Now

Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine

Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine
Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine
Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine

Large Image :  Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine

Product Details:
Place of Origin: China
Brand Name: SBN
Certification: CE ISO BV SGS
Model Number: SLG65 SLG70 SLG85 SLG95 SLG120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 30000
Packaging Details: wooden case
Delivery Time: 30-60 days
Supply Ability: 3 sets per month

Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine

Description
Product Name: Sinking Fish Feed Making Processing Extruder Manufacturing Machine Capacity: 0.1-3t/h
Processing Technics:: Twin Screw Extruder Finished Food: 1-14mm Floating,sinking Fish Feed
Raw Material: Corn, Soya, Bran, Mustard Cake, Fish Meal
High Light:

Turkey Service Fish Feed Processing Machine

,

Sinking Fish Feed Processing Machine

,

Turkey Service Fish Feed Manufacturing Machine

Turkey service Sinking Fish Feed Making Processing Extruder Manufacturing Machine



Production line Description

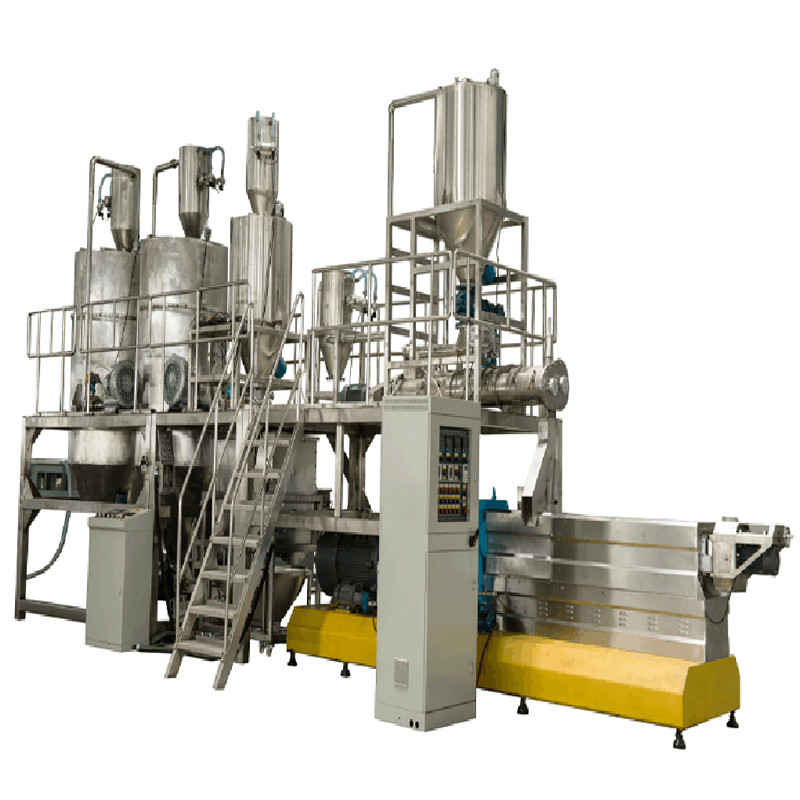

Twin screw fish feed extruder, also called floating sinking fish feed machine, is widely used for produce high-grade aquatic feed pellets for fish, catfish, shrimp, crab, lobsters, etc.We have two types of fish feed extruder, dry type and wet type model fish feed machine, through feeding materials, extruding,Forming,Filling and cutting, drying, oil spraying, packing to produce floating and sinking fish feed pellets automatically,Moreover, you can change extrusion degree to influence floating time.


Flow chart of fish feed production line:
Milling Machine → Mixer → Conveyor → Extruder → Conveyor → Dryer → Conveyor → Flavoring machine → Cooling Machine → lifter → Packing Machine

Raw material & Final Product

Most fish feed pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder…..Animal protein adopts fish meal, shrimp meal,crab meal, sleeve-fish meal and so on….you can add other ingredient according to the local fish live require.
It can also add high fat and protein raw materials, For example, fresh fish, bone, high protein content and high fat raw materials, etc.
Final products sample:



Main machines details

Twin Screw Extruder model option for customer to choose :


Model

Installed Power

Power Consumption

Output

Size

SLG - 65
74 kw 52 kw 140-160 kg/hr 17x1.3x2.2(m)
SLG - 70
105 kw
75 kw 240-260 kg/hr

20x1.5x2.2(m)
SLG - 85
205kw

150 kw
500-600kg/hr 30x1.5x2.6(m)
SLG - 95
132kw

75kw
800-1200kg/hr 35x2.5x3.8(m)
SLG - 120
280kw

132kw
2000-3000kg/hr 65x4.5x13(m)
Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine 0
Dry process equipment


1. High-strength cabinet, good stability

2. The screw material is alloy material, twin screw, easy to clean

3. Rotary cutting adopts straight cutting, easy to adjust the cutter head

4. Siemens main motor, good quality and long service life


wet type equipment


1. Cantilever rotary cutting, suitable for large output, quick tool setting, and more convenient adjustment

2. Reinforced high-torque new cabinet, with water cooling and filter, cabinet material QT400, aging treatment, good stability

3. The barrel is made of No. 45 steel with wear-resistant bushings, which has a long service life and low replacement cost

4. The modulator can increase the protein content, increase the output of the same model, and the blades can be adjusted for easy cleaning

Our company

Jinan Saibainuo Machinery Company is a special extrusion machinery manufacturer. Factory covering35000 m2, Have 100 workers and 15 engineers.We have 17years experiences.With our many years' research and study, extrusion techniques have been widely used in many fields. Our products consist of single/double-screw extrusion snacks machinery, breakfast cereal and corn flakes machinery, fish feed machine, pet food machinery, dog chew machinery, fried food machinery, etc. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to suit the requirements of customers.
Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine 1



Customer and project

Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine 2

Certifications

Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine 3

Our service And FAQ

Service
1) Provide factory layout according to your factory size in advance;
2) Provide the basic formula;
3) Inspect the machine before leaving the factory; Oversea installation and commissioning equipment;
4) Technician will work with your workers together and teach your workers how to install machines, how to operate machines, how to maintain machines during daily working;
5) Our engineers will teach your workers how to clean the extruder, how to change the screw, how to change barrel etc, and provide technology support with you forever;
6) Provide English Version of Installation / Operation / Service / Maintenance Manual.
Turkey Service Sinking Fish Feed Processing Machine Extruder Manufacturing Machine 4
