Product Details:
|
Place Of Origin: | Shandong, China | Application: | Fish Feed Production Line |
---|---|---|---|
Inverter: | ABB | Material: | Stainless Steel |
Application:: | Floating,slow Sinking,sinking Fish Feed | Contact Candice: | 0086 13589003039 |
Highlight: | 300kg/H Fish Feed Production Equipment,250kg/H Fish Feed Production Equipment,250kg/H Floating Fish Feed Production Line |
China factory floating fish pellet extruder / fish feed machine price
Introduction
The machine is widely used for process all kinds of grains into high-grade aquatic floating feed pellet for fish,catfish,shrimps,crab.
It also can make pet feed for dog,cat etc with different shape and chicken feed.

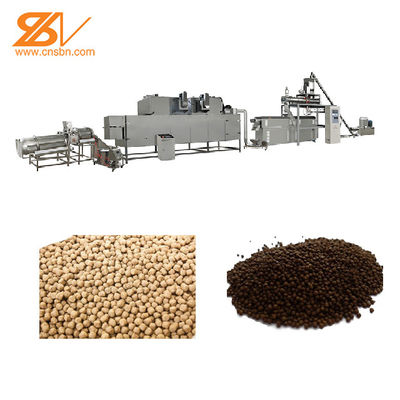

Floating Fish Feed Production Line Including Crusher-Mixer-Fish feed machine-Dryer-Cooloer-Oil spray machine-Packing machine.
Technical Specifications
Model | Capacity | Screw Diameter | Main Power | Feeding Power | Cutting Power | Conditioning Power |
DSP60 | 180-200kg/h | 60mm | 15kw | 0.75kw | 0.75kw | 0.37kw |
DSP70 | 250-300kg/h | 70mm | 18.5kw | 0.75kw | 0.75kw | 1.5kw |
DSP80 | 350-400kg/h | 80mm | 22-30kw | 1.1kw | 0.75kw | 1.5kw |
DSP90 | 500-600kg/h | 90mm | 37kw | 1.1kw | 1.1kw | 2.2kw |
DSP120 | 700-800kg/h | 120mm | 55kw | 1.1kw | 1.1kw | 2.2kw |
DSP135 | 1000-1500kg/h | 135mm | 75kw | 1.5kw | 2.2kw | 2.2kw |
DSP160 | 1800-2500kg/h | 155mm | 90kw | 2.2kw | 2.2kw | 3.5kw |
DSP200 | 3000-4000kg/h | 195mm | 132kw | 2.2kw | 3.0kw | 4.5kw |
Features
1). The fish feed pellets can float on water for over 20 hours.And sinking and floating aqua-feed pellets both can be made just by adjusting the feed formulation.
2). Pellet diameter is 0.9mm-15mm by changing the mold.The cutter can cutting the pellets into different length.
3)The feeding speed,cutting speed,temperature all can be adjusted.
4).The machine also can make feed for pet like dog,cat with different shapes and we can customized the shape for you.

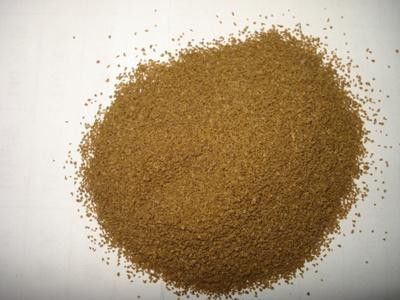

Raw Material
The raw material is: Flour,corn meal,soybean meal,maize meal ,meat meal,bone meal,fish meal etc.
Fitness: about 60-80mesh which were crushed and mixed.
Moisture content: about 20%-25%.

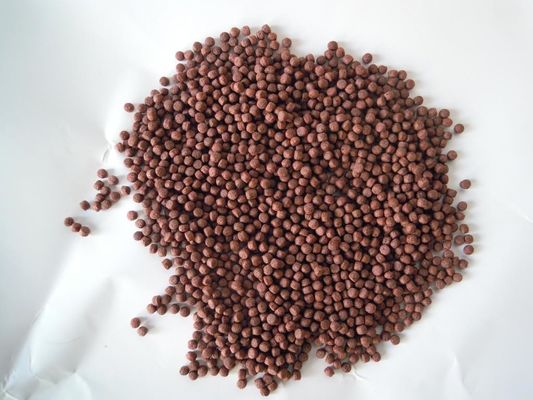

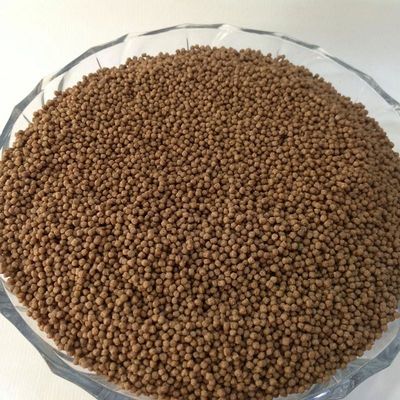

Fish Feed Pellet Sample
Round Shape
Diameter:0.9-15mm by replace the moulds
Spare Parts
The spare parts including screw,sleeve,heating plate,cutter.
We will supply 3 sets moulds and one whole set wear parts ( 1 screw, 2 sleeve, 1 cutter, 1 heating plate) freely for you.
Packing: Export standard wooden case or Whole contaciner
Delivery time:Withing 4-7 working days.
1. Package of inside is plastic film, outside is wooden or plywood cases, which is seaworthy.
2. We can supply fumigation package and certificate.
Shipping:By sea
China factory floating fish pellet extruder / fish feed machine price
1. The warranty time is one year, except the easy-wear parts.
2. If any parts are found defective in quality in the first year, we shall replace it freely.
3. Engineers can go abroad to guide the installation and traing.
FAQ
China factory floating fish pellet extruder / fish feed machine price
Q: What’s the difference between dry type extruder and wet type extruder?
A: The difference is the wet type need a steam boiler while the dry type doesn’t. The dry type is cheaper than wet type, and the feed pellets made by wet type extruder is much smooth and with better quality.
Q: How long does the floating fish pellet float on the water surface?
A: The feed pellets can float on the water surface for over 20 hours.
Q: Does the fish pellet machine can only make feed pellets for fish?
A: No. It’s not only can make high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc., but also can make pellets for chicken,cat, dog, etc.
Q: Do you supply the whole fish feed production line?
A: Yes. We can supply a fish feed product line include crusher, mixer, fish feed pellet machine, feed pellet dryer, fish feed pellet cooler, oil spray machine and packing machine. The capacity is from 60-5000kg/h.
Q: Is there a formula of making fish feed pellet?
A: We can offer free formula to our customers.
