Product Details:
|
| Motor:: | Siemens Motor | Application: | Fish Feed Production Line |
|---|---|---|---|
| Inverter: | ABB | Material: | Stainless Steel |
| Application:: | Floating,slow Sinking,sinking Fish Feed | Contact Candice: | 0086 18660166736 |
| High Light: | fish feeding equipment,fish feed production machine |
||
1. Introduction of Ornamental fish feed processing line
This line consists of mixer, double-screw extruder, air conveyor, dryer and coating machine, hoister,oil spaying, flavoring line.
Floating Pellet Size : 1-14mm
Feature :
1) Advanced technology products, mixed high, smashing fineness, particle shape, the water is stable
2) Excluding chemicals and antibiotics green
3) A comprehensive nutrition and promote rapid and healthy growth of fish, shorten the breeding cycle
4) Good palatability, lower feed conversion rates, the burden of low-cost fish
2. Equipment list of Ornamental fish feed processing line
Mixer---screw conveyor---twin-screw extruder---air conveyor---dryer---elevator oil sprayer--roller--cooling conveyor---air conveyor---sifter---air conveyor---storage
| NO. | Machine |
Intalled power (kva) |
Real power(kw) | Specification |
| 1 | Mixer | 3 | 2.8 | 25kg/6min Mixing the raw material and other additives fully. |
| 2 | Screw conveyor | 1.1 | 0.77 | Screw turns to make the raw material convey in the sealed tube,no leaking and no pollution. |
| 3 | Twin-scew extruder | 45 | 40 |
1.Single screw. 2.Main motor,35kw. 3.heating bands outside the barrel.3kw/band. 4.Cutter motor,1.5kw. 5.The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer. 6.Auto-temperature control system 7.Self-cleaning
|
| 4 | Air conveyor | 1.1 | 1 |
1.conveys the food relying on the wind-force from the blower 2.Low energy-consumption, high efficiency.
3 It has not the features of leaking material and pollution when the food is conveyed in the sealed stainless steel pipeline.
|
| 5 | Oven | 36 | 32 |
1.ectric oven,real power 32. 2.used to bake and dry food 3. net belt running speed can be controlled and change the food drying time in the dryer.Heating adopts the electric heat tube
|
| 6 | Elevator | 1.5 | 1.2 |
1.evator conveys the food from the discharge port of oven to the feed charge port of roller.
2. It is more suitable for the long distance conveying and can adjust the height by holder stand
|
| 7. | oil sprayer | 5 | 4 |
1.l sprayer may make the liquid oil and the solid fat be heated, then spray the food surface by the oil pump. 2.play a role in mixing with the oil and flavoring. 3.raying all kinds of oil and fat |
| 8 | roller | 0.75 | 0.65 |
sprays the oil from the feeding end of the roller then sprays the flavoring on the surface |
| 9 | Cooling machine | 2.2 | 1.54 | Conveyor and funs make the pasta cool and shape. |
3. The technical parameters of Ornamental fish feed processing line:
Three capacity: 140-160kg/h, 240-260kg/h, 500-600kg/h
|
SLG 65-III Pet food processing machinery | SLG70-II Pet food processing machinery | SLG85-II Pet food processing machinery | ||
| Installed capacity | 80KVA | 105KVA | 115KVA | ||
| Power | 58Kw | 70Kw | 80Kw | ||
| Output | 140-160kg/h | 240-260kg/h | 500-600kg/h | ||
| Dimension | 22×2×4m | 24×2×4m | 28×2×5m |

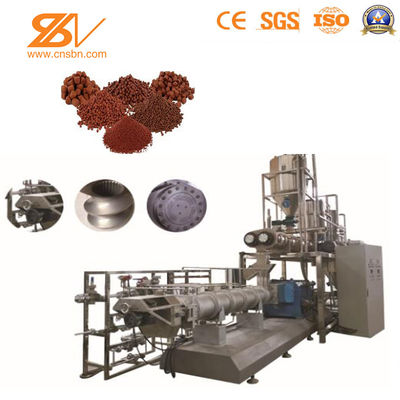

4. Picture of floating fish feed extruder machine:
Detail picture of Twin-scre extruder:
5. The picture of Saibainuo company:
Jinan Saibainuo Technology Development Co., Ltd. is a comprehensive enterprise integrated with
equipment research, development, production, sales and service with more than 16 years experience.
Due to sustained efforts, it has already owned multimature production, such as puffed food processing
line, isolated soya protein processing line and lab extruder etc.
We keep very close cooperation and exchanges with many world-renowned manufacturers and
domestic research institutions. In addition, with our quick access to information, timely delivery,
reliable quality and perfect service, our products have been exported to USA, Europe, Africa and
near countries such as Japan, India and Southeast Asia, recognized by broad masses of customers.
