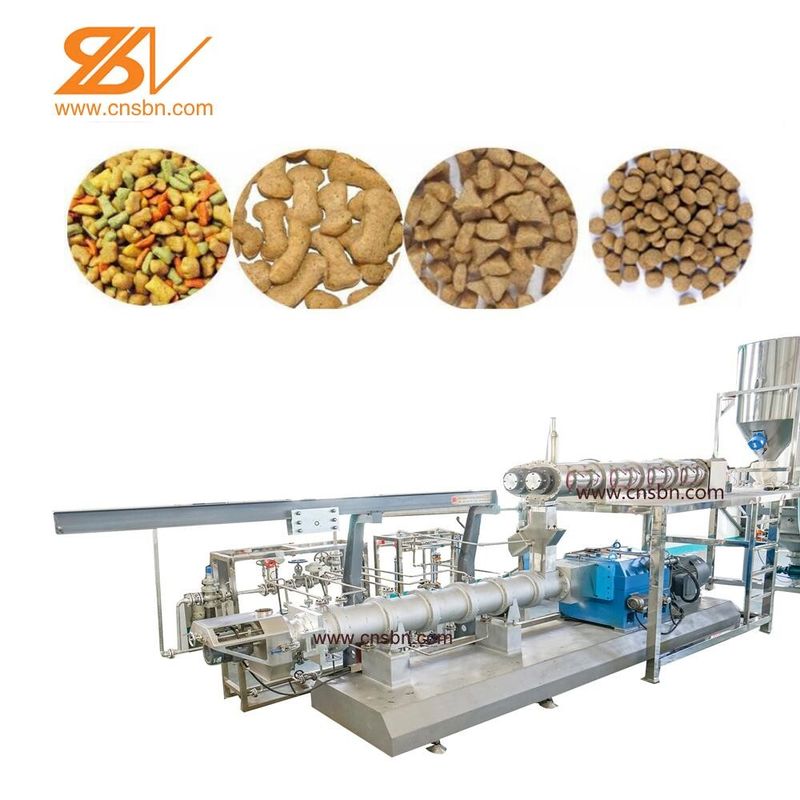

Floating Fish Dog Cat Pet Food Extruder Machine And Equipment 380V 50HZ

Certification
China Jinan Saibainuo Technology Development Co., Ltd certification
I'm Online Chat Now

Floating Fish Dog Cat Pet Food Extruder Machine And Equipment 380V 50HZ

Floating Fish Dog Cat Pet  Food Extruder Machine And Equipment 380V 50HZ
Floating Fish Dog Cat Pet  Food Extruder Machine And Equipment 380V 50HZ
Floating Fish Dog Cat Pet  Food Extruder Machine And Equipment 380V 50HZ Floating Fish Dog Cat Pet  Food Extruder Machine And Equipment 380V 50HZ

Large Image :  Floating Fish Dog Cat Pet Food Extruder Machine And Equipment 380V 50HZ

Product Details:
Place of Origin: Shandong, China
Brand Name: SBN
Certification: CE,SGS,BV
Model Number: SLG65/70/85/95/120/135
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 28000 SET
Packaging Details: Wooden cases
Delivery Time: Within 45 days after down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month

Floating Fish Dog Cat Pet Food Extruder Machine And Equipment 380V 50HZ

Description
Voltage: 380V 50HZ Also Can Be Customed Motor: Simens
Inverter: ABB Finished Shape: Variety Shapes Can Be Adjusted
Warranty:: One Year Process For:: Dog/pet/cat/fish And So On
High Light:

animal feed processing equipment

,

animal feed making machine

Floating Fish Dog Cat Pet Food Extruder Machine And Equipment 380V 50HZ


Product Description

China fish feed machine manufacturer, the simply introduction:

1. Pet food machine or animal material intended for consumption by dogs or other canines. The pet food is close to the human beings food in the fine level, the health index and the nutritional ingredients, some of them request more highly than human beings.

2. In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.Animal food is dried in a multipass dryer until its moisture content is low enough to make it shelf stable. Animal food may pass through a coating drum where animal fat and vitamins are applied onto animal food.

Pet food processing line Configuration:

1. Fish feed machine raw material mixer.
2. Screw Conveyor
3. Fish feed machine
4. Belt Conveyor(Air Conveyor)
5. Roasting Oven(Fryer Machine)
6. Flavoring Machine
7. Cooling Machine
8. Packing machine
9. Configurations can be increased or decreased as per customer's request.

The processing line is in reasonable design,high automation, stable performance, easy to operate, durable usage, high production effciency.

Model SLG65 SLG70 SLG85 SLG95

Install Power 65KW 110KW 190KW 250KW

Consumption Power 42KW 77KW 133KW 175KW

Output 120-150KG/H 220-260KG/H 500-600KG/H 900-1000KG/H

Dimension 19000×1300×2200mm 22000×1300×2200mm 30000×1300×2500mm 38000×1300×3000mm



Floating Fish Dog Cat Pet  Food Extruder Machine And Equipment 380V 50HZ 0

Main Features

1. Our processing line adopt international advanced technology, the pellets size are very even.
2. we can adjust the cutter speed and the dies to get the different diameter and the length product
3. The Electric heating device system can control the temperature accurately
4. High temperature and high pressure can kill the salmonellosis andbacterial infections.
5. This line can produce high-protein fish feed.
6. The processing line can produce both floating and sinking fish feed.

7. This line only need three workers

Certifications
Floating Fish Dog Cat Pet  Food Extruder Machine And Equipment 380V 50HZ 1

Machine Parts

Name: SLG95 Extruder

Brand: SBN

Original: China

The Twin-screw extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system. We will feed the material from the feeding machine and get the tissue state by inflating the material and the machine barrel must be high temperature, high pressure and high cutting. The material can be sterilized by the high temperature and high pressure and make the product safe.

Main Features

Name: Dryer oven
Brand: SBN
Original: China
1. The multi-layer dryer can be classified in to the electricity, fuel oil heating according to the different heating way.
2. It can be used to bake and dry the food. The dryer can bake all kinds of the inflating food, pet food, tissue protein, peanut and so on.
3. Seven-layer dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency
The belt and the heat preservation use the stainless steel, it is very clean

The net belt running speed can be controlled and change the food drying time in the dryer; The temperature can be controlled willfully and designed according to the need.



Machine Parts

Name: Roller
Brand: SBN
Original: China
The two-section and the high-low roller, which sprays the oil from the feeding end of the roller then sprays the flavoring on the surface and separate the oil from the material is suitable for the high-quality products.

Main Features

Name: Cooling conveyor
Brand: SBN
Original: Germany
1.It is mainly for product after extruder, it can conveyor the product to the Oven.
2.Cool it down during the conveying

Floating Fish Dog Cat Pet  Food Extruder Machine And Equipment 380V 50HZ 2
Packing & Delivery

Packing Details : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 3-30 days after order of Solid bicycle tire tubes

Floating Fish Dog Cat Pet  Food Extruder Machine And Equipment 380V 50HZ 3


1. Negotiate

2. Production process

3. Inspection

4. Packing

5. Loading

6. Shiping

Our Service

Floating Fish Dog Cat Pet  Food Extruder Machine And Equipment 380V 50HZ 4

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Company Profile
Floating Fish Dog Cat Pet  Food Extruder Machine And Equipment 380V 50HZ 5

Saibainuo is a leading manufacturer of high quality twin screw and single screw extruders for food industries.

We have almost ten years'experience of working with our customers providing specialist designs and practical solutions for a wide range of process needs. Textured soya protein machine
We have been supplying the most efficient equipment available to snacks food manufactures around the world.
Factory standing area:30000 square meters Workshop standing area:20000 square meters.
Office area:4 floor with 600 square meters.
