Product Details:
|
| Craft: | Twin/double Screw Extruder | Modle: | SLG65/SLG70/SLG85/SLG95/SLG120 |
|---|---|---|---|
| Weight: | 2000-20000kg | Power: | 58-380kw |
| Service: | Engineer Install Service,traning Worker | Material: | Staineless Steel Food Grade 201,304 |
| Converter: | ABB,LS,Delta | Finished Food: | Dog Food,cat Food,fish Feed,shrimp Feed,animal Feed |
| Raw Material: | Corn Flour,rice Flour,wheat Flour,soya Powder,fish Meal,bone,meat Powder | ||
| High Light: | food extruder machine,twin screw extruder machine |
||

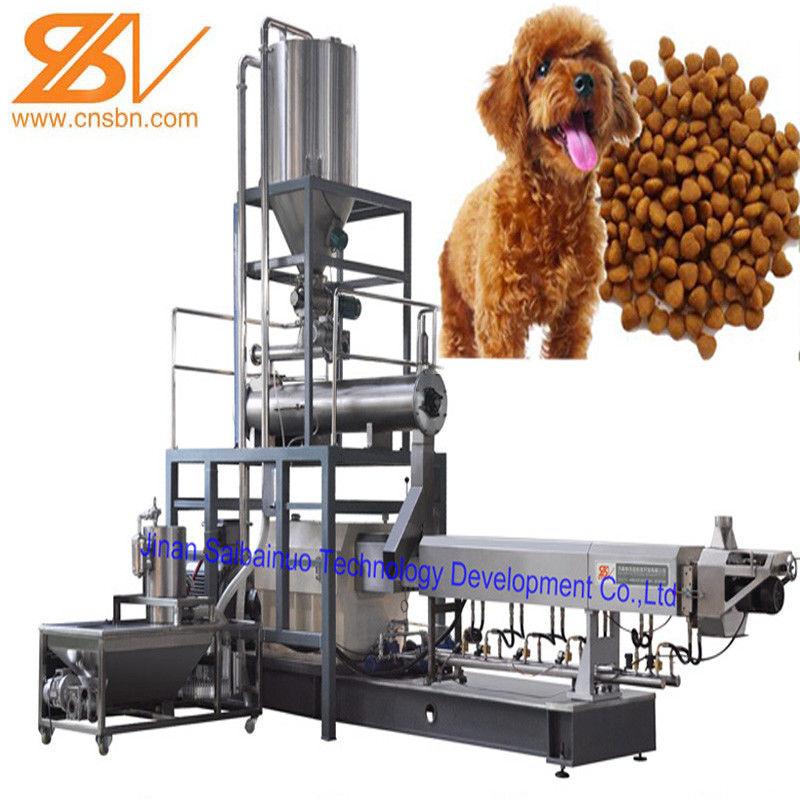

1. Dog Food Extruder Physical details
Function:
The material can be puffed by the high temperature and high pressure and formed into a variety of food.
Features:
Frequency speed controlling system makes machine stable performance and saving;
The screws and barrel are made up of the alloy steel and special craft, durable usage, life is longer. Adopting the building block structure and combining willingly by your different demand;
The forced lubrication system, so that it can guarantee the equipment transmission life longer.
Auto.temperature control system; to make sure the temperature controlling more direct viewing and the parameter more precise;
Self-cleaning, when stopping, it can be cleaned without disassembling.
2. Dog Food Extruder Model and Parameters
|
Model |
capacity |
Installed capacity |
actual consumption(kw) |
Speed control mode |
Dimension (m) |
| SBN30-IV | 5-25kg/h | 15kw | 10kw | Inverter | 1.9*0.7*1.45 |
| SBN65-III | 160kg/h | 37kw | 38kw | Inverter | 2.0*0.9*1.9 |
| SBN65-IV | 240kg/h | 57kw | 40kw | Inverter | 2.5*0.9*1.9 |
| SBN70-II | 260kg/h | 57kw | 40kw | Inverter | 2.7*0.9*1.9 |
| SBN80-II | 400kg/h | 98kw | 75kw | Inverter | 3.8*1.0*2.5 |
| SBN77-II | 400kg/h | 98kw | 75kw | Inverter | 4.0*1.0*2.5 |
| SBN77-III | 400kg/h | 98kw | 75kw | Inverter | 5.5*1.0*3.9 |
| SBN85-II | 500kg/h | 98kw | 75kw | Inverter | 4.2*1.0*2.5 |
| SBN85-III | 600kg/h | 132kw | 85kw | Inverter | 4.5*1.0*2.5 |
| SBN95-III | 900kg/h | 205kw | 150kw | Inverter | 6.2*1.1*4.0 |
4. Final product samples
(1). The SLG Dog food extruder is researched and developed by our SAIBAINUO company based on the foreign advanced technology.This processing machinery is suitable for the pet food,dog food,cat food and fish feed and shrimp food.
(2). The dog food generally consists of meat,cereals,grain,vitamins and minerals.The general grains,such as soyabean meal,corn meal,cracked wheat,and barley,are ofen used to improve the consistency of the products.
