Floating And Sinking Fish Feed Pellet Machine / Fish Food Processing Machine

Floating And Sinking Fish Feed Pellet Machine / Fish Food Processing Machine
Floating And Sinking Fish Feed Pellet Machine / Fish Food Processing Machine
Floating And Sinking Fish Feed Pellet Machine / Fish Food Processing Machine Floating And Sinking Fish Feed Pellet Machine / Fish Food Processing Machine

Large Image :  Floating And Sinking Fish Feed Pellet Machine / Fish Food Processing Machine

Product Details:
Place of Origin: China
Brand Name: SAIBAINUO
Certification: CE BV SGS
Model Number: SLG65;SLG70;SLG85;SLG95;SLG120;
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: US$10000-80000/SET
Packaging Details: Wooden case and other Seaworthy Packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month

Floating And Sinking Fish Feed Pellet Machine / Fish Food Processing Machine

Description
Material: Stainless Steel #304 Motor Brand: Siemens
Inverter Brand: LS Electric Device: Schneider
Space Needed: 30*2*3m Worked Needed: 3-5
High Light:

fish feed processing line

,

fish food processing equipment

Floating And Sinking Fish Feed Pellet Machine / Fish Food Processing Machine





1. Introduction of koi/catfish processing plant machine:

Operating easily all-automatic, Self cleaning to save manwork and time, Sanitary food grade, Durable with a long life time.
You can make any shape of the pet'feed according to different market requirements. These line has been on good sales all over the world. Perfecte quality and excellent after-sales service bring us good comments and confidence.

Floating And Sinking Fish Feed Pellet Machine / Fish Food Processing Machine 0

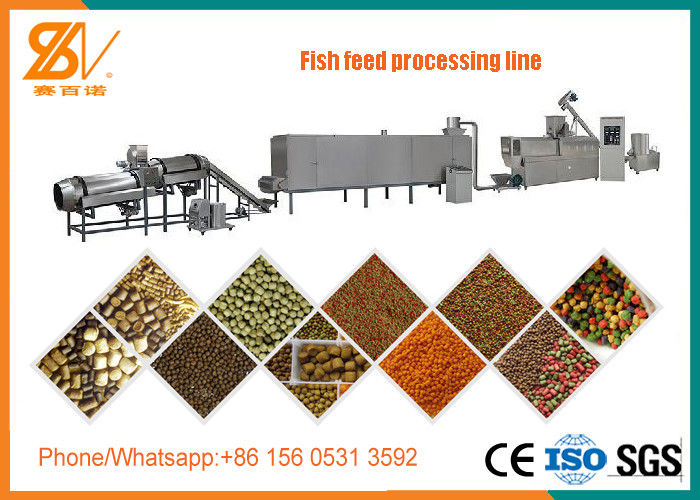

2. Flow chart of koi/catfish food processing plant machine:

Mixer→ Screw conveyor→Twin-screw extruder→ Air conveyor→ Three layer dryer→Air conveyer→ Oil sprayer→ Flavoring→ Sifter→ Cooling conveyor



3. Specification of koi/catfish food processing plant machine:

The Twin-screw extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system.

  1. We will feed the material from the feeding machine and get the tissue state by inflating the material and the machine barrel must be high temperature, high pressure and high cutting. The material can be sterilized by the high temperature and high pressure and make the product safe.
  2. The pet food machine is reasonable design, high capacity and high automatation.
  3. The pet food consist of corn powder, soya powder, meat powder, bone powder etc. materials, raw materials are low cost but end pet food product is with high profit.
  4. The screws are made of 38 CrMoAl, which is a speicial kind of ally steel and special design according to product’s requirement, using life is long, has combined model can freely assemble to get different status product.
  5. Self-cleaning, whaen stopping, it can be cleaned without disassembling.

4. Model of koi/catfish food processing plant machine:

Model SBN65-III Fish food processing Line SBN70 Fish Food Processing Line SBN85 Fish Food Processing Line
Installed Capacity 70 kw 120 kw 145 kw
Power 35kw 75 kw 110 kw
Capacity 120-160kg/h 230-260 kg/h 500-550 kg/h
Dimension 12x2x4m 33x2x4m 35x2x4m

5. Samples of koi/catfish food processing plant machine:



Floating And Sinking Fish Feed Pellet Machine / Fish Food Processing Machine 1

6. Machines Materials:

Excellent performance

Low maintenance

Longer functional life

Rigid construction

Complete SS 201,304,316 construction

Hygienic design

Easy accessible hence proper cleaning

Food grade belts and other accessories except bought out items like motors, bearings etc.

Robust and reliable design.

Automatic – combination of batch peeling and continuous process

Energy efficient and environmental friendly technology

7. Pet food processing machine Features:
1. Can manufacture ten different shapes pet food for dog, cat, fish and bird and so on.
2. Only need small place for compact structure

3. High outputs and easy to operate
4. Saving manufacturing space and manufacture cost, also manual work for automation.

5. Pet dog and fish food formula designed free

6. Complete after service
