High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet

Certification
China Jinan Saibainuo Technology Development Co., Ltd certification
I'm Online Chat Now

High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet

High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet
High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet
High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet

Large Image :  High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet

Product Details:
Place of Origin: Shandong, China
Brand Name: SBN
Certification: CE,SGS,BV
Model Number: SLG65/70/85/95/120/135
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Price: 30000USD
Packaging Details: Wooden cases
Delivery Time: 30 days after down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month

High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet

Description
Place Of Origin: Shandong, China Application: Fish Feed Production Line
Inverter: ABB Material: Stainless Steel
Application:: Floating,slow Sinking,sinking Fish Feed
High Light:

12mm Pellet Fish Feed Extruder Machine

,

2mm Fish Feed Extruder Machine

,

12mm fish feed pellet machine

                        Factory supply directly high grade floating fish feed extruder machine price

1.Fish feed extruder machine description

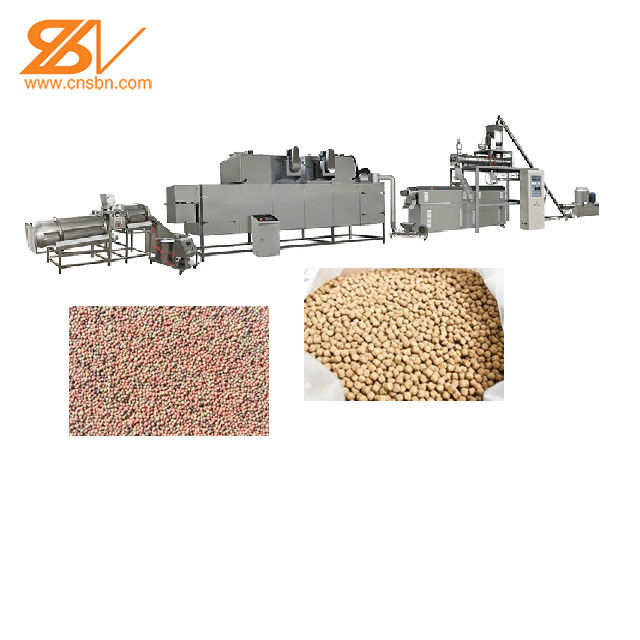

Floating fish feed extruder machineis applied to produce the food with novel shape, particular taste and color, scientific nutrition combination catch up the trend of the market. In fish food processing line you will see the advanced technology of Sunpring machinery. With simple operation, accurate parameter control, the products can be finished in the stipulated temperature, pressure, humidity and time. Owing to the reasonable design, special materials, the stability, repairs can be guaranteed and ensured. The various shape and taste can meet the different requirements of the fish food.





High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet 0



High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet 1



2.a.Products: different shapes are made by adjusting the dies from extruder

b. Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton---3ton/h

c. Flow chart:Mixing system---Extrusion system---Drying system---Flavoring system---Packing system

d. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

e. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.

3.

Capacity: 1-20TPH

Pellet size: 2-12mm

Application: Can be used for poultry,livestock,ruminants and aquatic pellet feed production.


Model
Installed Power
Output
Size
HM65
60KW
150-180KG/H
28000*1200*2200mm
HM70
90KW
200-260KG/H
32000*1500*2200mm
HM85
100KW
300-400KG/H
35000*1500*3500mm
HM90 96KW 800-1000KG/H 30000*3500*2300mm
HM95
180KW
800-1000KG/H
45000*2500*3500mm




4.Details Images

Feature

1).We can provide different capacity production lines according to your requirements.
2).Non-dust workshop, Advanced PLC electrical control.
3).
We could make powder feed unit,premix feed unit,and pellet feed unit.
4).Stainless steel materials and Carbon steel materials for spare parts ,dies and rollers.
5).Overseas engineers can participate in the installation project up to the turnkey stage.

5.Complete feed production process including :

Step 1. Raw materials receiving and cleaning process ---
Mainly used for the material of corn stalks, stones, rope head, branches, corn cob, sand, dry grains and other sundry cleaning and screening.
Step 2. Crushing process ---
This process is mainly used to crush to raw materials into powder.We have many kinds of hammer mills for your choice: water drop hammer mill, multifunctional hammer mill and 9fq hammer mill etc
Step 3. Mixing process ---
The process is used to mixed the crushed materials with higher uniformity.The feed mixer we have are single shaft double screw mixer, double shaft paddle mixer,vertical mixer.
Step 4. Pellet making process ---
We have five models of feed pellet mill for your choice. This process is to press the pellets out.
Step 5. Pellet cooling process ---
The newly pressed pellets are very high in temperature. This process is to cool the pellets to ±3-5℃ of the room temperature.
Step 6. Pellet crumbling process ---
This process is mainly to crush the big pellets into small ones. It is mainly used for chicken feed pellet line.
Step 7. Sifting process ---
vibratory sizing sieve and plenary rotary sizing sieve. This process is mainly to sort out the inappropriate pellets and powder and send the standard pellets to next process.
Step 8. Packing process ---
Packaging machine.This process is to pack the pellets into bags which is convenient for storage and transportation.

6.Samples:

High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet 2



7.Product packaging

High Grade Floating Fish Feed Extruder Machine 2-12mm Pellet 3





8.Company Profile



1.Jinan Saibainuo Technology Development Co., Ltd.

The largest factory in the industry, covering an area of 50 acres, fast, professional and rigorous production technology, verified supplier by SGS and Alibaba.
2.We have over 10 experienced engineers who can help you achieve full-link professional services from customization to debugging guidance. Excellent service capacity, has served customers in more than 100 countries around the world.
3.We have our own import and export license. Our company is not only supply large engineering equipment, but also has the ability to provide personlized design, we have CE,SGE and BV.
9.Our Service:
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Pet Food Machine.

10.FAQ

Q1.Are you a manufacturer or a trading company?
We are a professional manufacturer of food&feed machine.
We have own factory and R&D department.
Q2.Can you provide food or feed formula?
We can provide basic formula for produce the food etc.
And help customer to produce new products according to customer’s formula.
Q3.What after-services do you provide?
Send engineers for installation,trial running and training workers at customer’s site.
Handling the problems occurred during use.Supply spare and wearing parts on discount.
Help customers to solve any other problems.
