1. Description: animal feed processing machine is applied to produce the pet feed (dog food, cat food, fish food, bird food)with novel shape, particular taste and color, scientific nutrition combination catch up the trend of the market. In this animal feed processing machine you will see the advanced technology of AMC machinery. With simple operation, accurate parameter control, the products can be finished in the stipulated temperature, pressure, humidity and time.
2. Marerils: fish powder, bone powder, corn flour, de-fat soybean meal, etc.
3. Products: different shapes
4. Capacity: 120-150kg/h, 200-250kg/h, 500kg/h,1Ton/h
5. Voltage: three phases:380V/50Hz, single phase: 220V/Hz. We can change it to what the customers want.

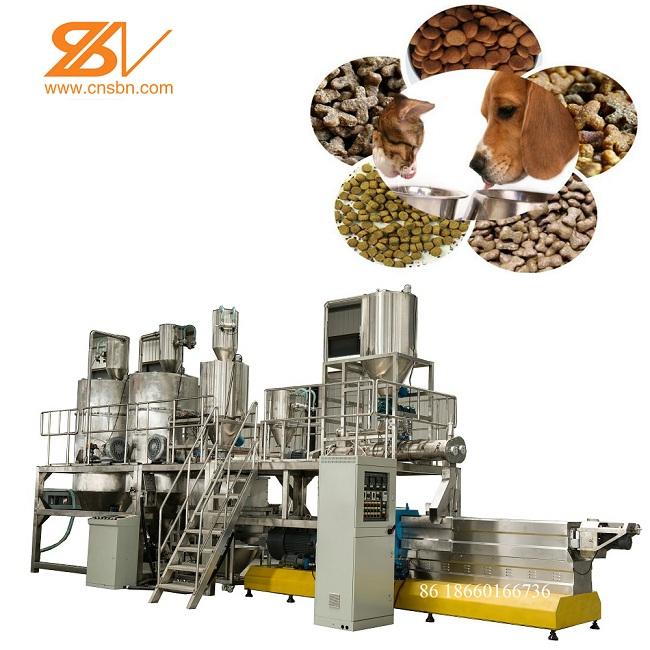

6. The whole processing Line: Mixer→Double screw Extruder→Air Conveyer→Roasting Oven→Flavoring Line.
7. Machine Material: the whole processing line machines are made of stainless steel.
Pet food processing machines Configuration:
1). Pet food raw material mixer.
2). Screw Conveyor
3). Pet food machine
4). Belt Conveyor(Air Conveyor)
5). Roasting Oven(Fryer Machine)
6). Flavoring Machine
7). Cooling Machine
8). Packing machine

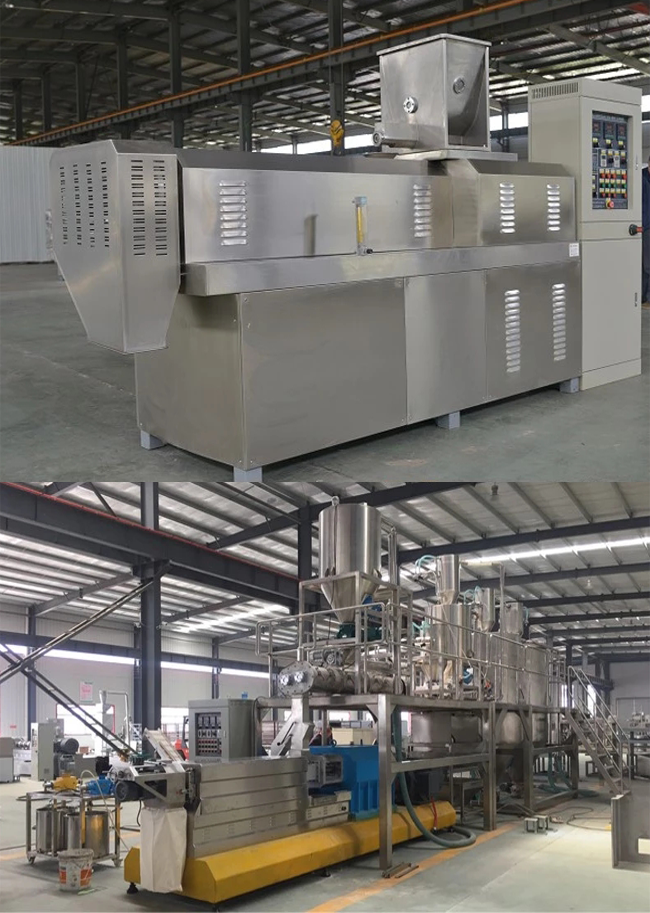

Function and parameter of main parts of SLG85:
With this twin screw extruder, you can produce all kinds of extruded foods, such as artificial rice/puffed rice flakes, puffed food, corn flakes/Breakfast cereals, corn snack food, bread crumbs etc.
1. Feeding System
Installed in the main machine, which feeds materials spirally, and the quantity can be adjusted. This system includes engine, screw, blender and machine shelf. The blending wing is used to prevent roller empty although the materials are inside. The speed should be better if the materials are neither accumulated nor stop.
2. Extruding System
The main parts of twin screw extrusion system is screws and knots. Two screws revolve left , inter mesh and run in the same direction.
In the course of working, screws scrape the sticky materials each other and push forward. Screws are connected by the couplings and constitute a whole concentric screws. Connection is with good interchangeability, easy to be Assembled and Disassembled.
3. Cutting System
Includes engine, shelf, cutter and transmitting system. The shelf is fixed on the head of the molds; and turns and cuts the materials motivated by the belt wheel, the speed of which should be subject to the type of products.
4. Lubricating system
Lubricating system is composed of gear pump, oil tank and oil route. Motor drives the gear pump to lubricate and cool all the parts of gear box. Oil pump is installed with the filter.
5. Driving system
Driving starts from main motor and put through belt pulley and gear box. it is divided to two same direction output shafts. Gear Z24 and Z50 mesh each other and belong to triangle driving system. Two matching Z24 gears carry the torque and radial force coming from the screws.
6. Heating system
It is divided three working areas from the barrel, the barrel outside is heated by the pressure changing areas so that he can control the status of the materials.
water-cooling system, and it has a good temperature stability and then to ensure product quality stability.
7. Controlling system
The machines are controlled centrally, including mixer, screw conveyor, conditioner, feeder, oil pump, cutting, screws, heating and elevator and so on. It is equipped with the automatic protect device and indication instrument.
Formula provide basic formula by seller
1. Our processing line adopt international advanced technology, the pellets size are very even.
2. we can adjust the cutter speed and the dies to get the different diameter and the length product
3. The Electric heating device system can control the temperature accurately
4. High temperature and high pressure can kill the salmonellosis andbacterial infections.
5. This line can produce high-protein fish feed.
6. The processing line can produce both floating and sinking fish feed.
7. This line only need three workers
